BAND SAW BLADE SHARPENER AF 518

  • Band saw blade sharpener af 518

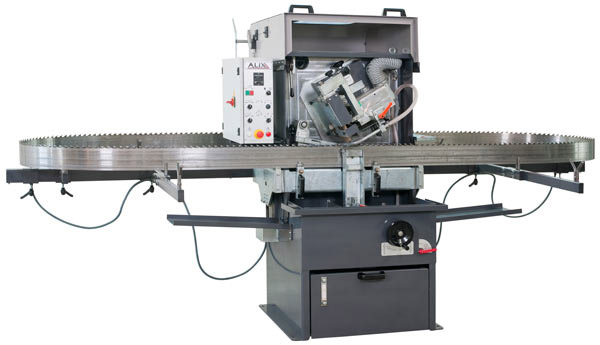

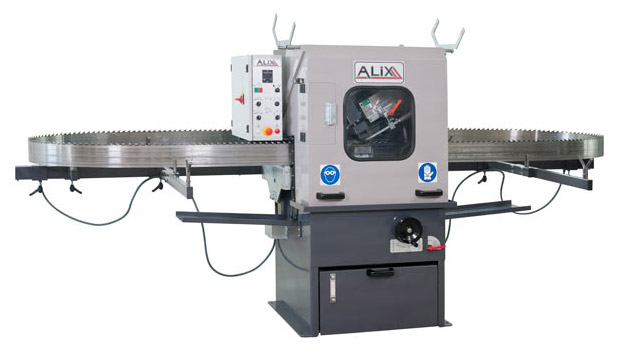

The ALIX AF518 series sharpener is a machine for sharpening band saw blade teeth of log saws.
It is a simple and functional machine that ensures correct sharpening. It consists of a compact steel, extra strong structure that considerably reduces any type of vibration. Tooth shaping is achieved using the traditional cam system. The grinding wheel dressing device ensures a constant and correct grinding wheel profile until it is completely worn out. Nonetheless, this profile can be changed to optimise the profile of all types of teeth.
Vertical adjustment of the blade support stand is manual or can be motorised on request. The vice is closed manually and the clamping pressure is adjustable. The electrical cabinet is equipped with an ergonomic and straightforward control panel. The machine is produced in the right or left handed version and a wide choice of optional accessories means that you can customise the machine according to your specific needs.
On request, the rotation speed of the grinding wheel can be variable to keep the peripheral speed of the same constant; this, together with the abundant supply of coolant, ensures an excellent finish of the tooth and avoids dangerous thermal alterations on the blade body.

MAIN TECHNICAL DATA UM SHARPENER - MOD. AF 518
Blade width [mm] min 50 max 180
Blade length [mm] min 4500 max 10000
Tooth pitch [mm] min 20 max 50
Blade thickness [mm] min 0,8 max 2,1
Tooth height [mm] 20
Coupling angle [gradi] 40°
Grinding wheel diameter [mm] 300
Grinding wheel surface speed at fixed rpm [m/s] 44
Constant grinding wheel surface speed (optional) [m/s] 58
Grinding wheel motor power [Kw] 3
Feed speed [teeth/min] 7
Adjustable feed speed [teeth/min] 20
Installed power [Kw] 3,4
Approximate machine weight [daN] 760
Coolant tank capacity [l] 140
AVAILABLE ACCESSORIES
  • Cross pieces on carousel to aid blade loading
  • Front stand for blades smaller than 5500
  • Grinding wheel support flange (with balancing weights)
  • Grinding-wheel balancer kit
  • Grinding-wheel support auxiliary flange
  • Internal lighting
  • Variable work speed
  • Variable grinding-wheel rotation speed
  • Rear auxiliary feed
  • Grinding wheel dressing device
  • Motorized carousel adjustment
  • Walk-on platform
  • Hour counter
  • Kit for blades with double teeth
